Copying and mimicking a drawn electronic schematic to a board and make it work
Please read the description first.

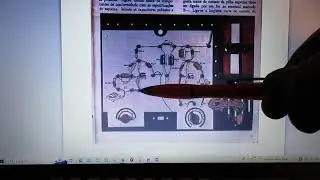

I got an interesting booklet via one of my followers in Brazil, Anderson Pessoa. It was one of the booklets he sent me via mail, I am showing some pages in this video.
It is/was about making basic electronic circuits in Brazil. A booklet of the late 1960’s-early 1970’s.
By the way: just like they were made in the Netherlands, in those days. The famous Philips EE (EE = Electronic Engineer) kits/boxes, via which electronics was promoted to youngsters in those days, the 1970's.
He reacted to my latest video: about transistor testers (NPN/PNP Germanium/Silicon) via a a-stabile multivibrator.
Link is • Easy Germanium/Silicon NPN or PNP tra...
In one of the books that he sent me I found, to my surprise, that in Brazil in the 1960’s-1970’s they showed a simple but very good and effective way to “transport” a drawn electronic schematic directly to a board.
And then not to an experimental/test board, but to a really working schematic by copying/mimicking that drawing directly to a piece of insulation material, where there were pins (drawing pins) to solder the components to.
I think this is the best way (or a good way) to make/develop electronics circuits, test them, do adaptations, etc.
Reason: such a circuit is semi-permanent and can easily be made to a permanent circuit. This kind of setup can work (my idea) with some considerations up to 8 Megahertz.
As far as I could see Anderson Pessoa makes his circuits in this way.
E.g. a link to a succesful audio amplifier made in this way is here:
• Amplificador Classe AB com Tip 31/ T...
He does not show the schematic in this video, but perhaps you can ask/mail him.
