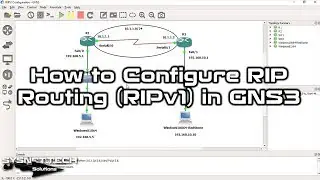

How to Configure RIP Routing (RIPv1) on Cisco Router in GNS3 | SYSNETTECH Solutions
This video shows you how to configure the Routing Information Protocol (RIP) on Cisco Routers on the GNS3 network simulator program.
✅ S U B S C R I B E ► http://goo.gl/8d0iG9
✅ Article ► https://www.sysnettechsolutions.com/e...
To configure the #RIP Routing:
Step 1: If you have not installed GNS3 before, please refer to the following videos to install it on Windows, Linux, and macOS.
Windows ➦ • How to Install GNS3 2.1 on Windows 10...
Linux / Ubuntu ➦ • How to Install GNS3 VM in VMware Work...
macOS ➦ • How to Install GNS3 on macOS High Sie...
Step 2: After you have done the installation, if you haven't added the #Router IOS image to GNS3 before, please refer to the following video.
Video ➦ • How to Add Cisco Router IOS Images to...
Step 3: Add two Cisco Routers and Cisco Switches to the workspace.
Step 4: Also, add 2 Cloud PCs to the workspace. To add Cloud PC, please refer to the following video.
Video ➦ • How to Configure Cloud in GNS3 | How ...
Step 5: Connect the Cisco Routers with the Serial Interface. And do the Cisco Switch and Cloud PC connections.
Step 6: Run Cisco Routers.
Step 7: Run virtual machines on VMware Workstation connected to Cloud PC.
Step 8: Specify the IP block you want to configure before configuring Rip. (Eg 192.168.1.0/24)
Step 9: Also, configure the IP block of the network connection between the Cisco Routers. (For example 10.1.1.0/24)
Step 10: Open the CLI command prompt on the Cisco Routers and configure the Serial and FastEthernet interfaces.
Step 11: Once you have completed the steps required for RIP Routing, switch to the config mode and add the networks connected to the Routers to the Rip routing table.
Step 12: Perform the following commands as an example to enable the routing information protocol.
R1 (config) # router rip
R1 (config-router) # network 10.1.1.0
R1 (config-router) # 192.168.5.0
R1 (config-router) # end
R2 (config) # router rip
R2 (config-router) # network 10.1.1.0
R2 (config-router) # 192.168.10.0
R2 (config-router) # end
Step 13: Watch the video for the rest of the processes.
Step 14: Don't forget to subscribe to our YouTube channel for more videos on Cisco training with #GNS3!
