open air coil completely shielded with tin plate, effects on the frequency

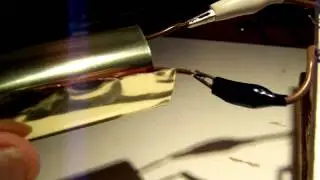

Old upload ( 6 september 2008) from my former channel, Radioam232. The effects when a open air coil (without a ferrite rod in it) is completely shielded with tin plate. The frequency goes up substantially. Keep it in mind when designing (e.g.) and building IF coils by yourself, take the higher frequency in reality in account. More electronics in my books on the Lulu website, author Ko Tilman.
Much more info and links about this issue in
