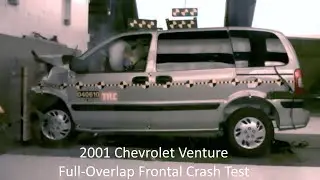

1997-2005 Chevrolet Venture / Pontiac Trans Sport / Montana (SWB) Full-Overlap Frontal Crash Test
a 35 Mph (56 Km/h) full-overlap frontal crash test was performed on 06/10/2004 at Transportation Research Center Inc. (TRC Ohio) The target vehicle is a 2001 Chevrolet Venture SWB built on 09/2000 with 77,689 miles at the time of testing. This test was performed to gather occupant data in 35 Mph Full-Overlap test scenarios. The Vehicle is equipped with a 50th percentile male driver and a 5th percentile female passenger. Occupant injury data is gathered relevant to FMVSS 208. This series of testing supplements the data gathered from the Fleet Incompatibility Program contracted to MGA Research.
Occupant Injury Data
Driver - Passenger (50th Driver / 5th Passenger FMVSS 208 Limit)
HIC36 864 - 324 (1000 Max)
Nij (Neck Injury Criteria) Did not exceed limit of 1.0
Chest G's 39 - 46 (60 Max)
Chest Compression (mm) 29 - 25 (63 / 52 Max)
Femur Loads (L/R - N) 5366/8720 - 3275/2881 (10000 / 6805 Max)
