Design of Flat slab with drop panels in etabs Tutorial
In this video i have shown how to design flat slab with drop panels using etabs using direct design method DDM method with full steps etabs tutorial

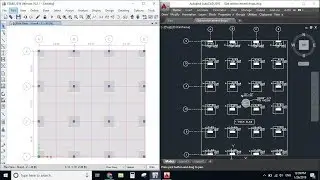

Also how to detail flat slab drawing in autocad and import results from etabs to autocad for detailing the RCC flat panel slab
Complete design of rcc flat slab using excel for punching shear check
Detailing of rcc flat slab and drop panels using autocad
How to design RCC flat slabs in etabs
Assign strips in etabs Or draw column and middle strips in etabs
Rules for column strip and middle strip in etabs calculation using DDM method
Slab meshing in etabs
Calculate steel in drop panels using etabs software
Calculate slab steel using etabs software
Calculate reinforcement in flat panel slab using etabs
Check serviceability of slab in etabs
Check longterm deflection in etabs using ACI code deflection limits for slabs
Punching shear check in drop panel slab
2 way shear check excel sheet
Steps for slab designing by direct design method DDM ( flat plate slab interior panel, exterior panel, corner panel design)
Defining grids for slab design
How to calculate slab thickness using ACI 318-08
How to calculate drop panel thickness using ACI 318-08
How to calculate drop panel size using ACI 318-08
Define material properties for slab shell or membrane
Define plinth beam and column sections in etabs
Property modifiers using ACI code in etabs for cracked moment of inertia
Model the structure in etabs
Meshing of slab calculation
Define load patterns
Modeling of drop panels in etabs
Design of drop panel slab in etabs
Assign loads to slab in etabs
Residential Loads from UBC 97
Load combinations for slab design
Draw design strips on slab in etabs calculation
How to check Longterm deflection for slab
Assign reinforcement steel to slab strips
Assign diaphragm to slab
Replicate the slab
Impose minimum reinforcement in etabs
Detailing of slab in AUTOCAD
Draw slab reinforcement, How to read slab reinforcement in framing plan
Interpretation of structure drawing of framing plan reinforcement
