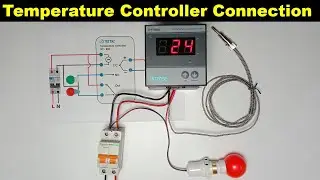

Temperature Controller Connection with thermocouple
In this Video you will learn how to do connection of Tc ( temperature controller ) with Thermocouple, RTD and SSR ( solid state Relay )
watch this video till the end to learn the all concept for wiring the temperature controller .
Q: What is a Temperature Controller, and how does it work?
A : A temperature controller is a device that is used to control temperature. It does this by first measuring the temperature (process variable), it then compares it to the desired value (set value). The difference between these values is known as the error (Deviation). Temperature controllers use this error to decide how much heating or cooling is required to bring the process temperature back to the desired value. Once this calculation is complete, the controller will produce an output signal that effects the change required. This output signal is known as the (manipulated value) and is normally connected to a heater, control valve, fan or some other "final control element" which actually injects or removes heat from the process.
Q. What is a Thermocouple ?
A thermocouple is an electrical device consisting of two dissimilar electrical conductors forming an electrical junction. A thermocouple produces a temperature-dependent voltage as a result of the thermoelectric effect, and this voltage can be interpreted to measure temperature. Thermocouples are a widely used type of temperature sensor.
I have used Tense Electronic Company Temperature Controller which model number is DT-96E
Specifications of this Controller 👇👇👇
✅ Measuring Scale: 0 °C....600 °C
✅ SET Invertal: 0 °C....600 °C (limited with Up.L value)
✅ Hysteresis Interval: 0 .. 50 °C
✅ Sensor: Fe-Const, J type T/C
✅ Resolution: ± 1 °C
✅ Accuracy: ± % 0.3
✅ Control Form: ON-OFF
✅ Out: Relay (NO + NC), 250VAC, 2A, Resistive Load
✅ Supply Voltage: 100....240VAC, 50/60 Hz
✅ Operating Voltage: 100…240VAC
✅ Operating Freuqency: 50Hz / 60Hz
