Cisco CCNA Frame Relay Point To Point With Sub Interface Part 2
Hello Friend
Today I am going to show how to create 4 Sub Interface Frame Relay Network

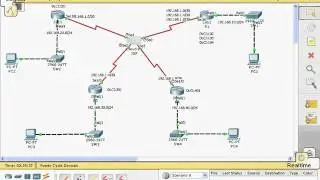

I am using Cisco Packet Tracer for doing this lab
Rename the all device
connect the all LAN Cables
configure the LAN Network for all routers
configure the IP Address on all PC
ping the router from PC
Add the serial port on all routers
Remove the extra ports from Cloud
Do the IP Tagging & DLCI Tagging for all network
Connect the cable between ISP and Routers
Configure the serial port on R1
Now Configure R2, R3 and R4
No Configure the Cloud (ISP) As a Frame-Relay
Now configure the eigrp on all routers
Now check the ping between all networks
Its All done
Thank You
Vikas Singh
