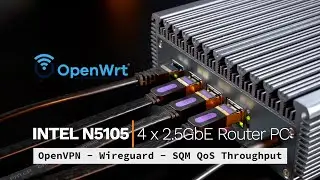

OpenWRT - Intel N5105 2.5GbE I225-V - Performance Test (OpenVPN Wireguard SQM QoS Throughput)

Опубликовано: 11 Сентябрь 2022
на канале: Van Tech Corner

10,482

160

In this video, we are going to check out the Intel N5105 2.5GbE Router PC's performance with OpenVPN, Wireguard and SQM QoS. The test was done with OpenWRT 22.03.0-rc6 (r19590-042d558536). In this build, the driver for the Intel I225-V 2.5 Gigabit Ethernet controller had been pre-installed (kmod-igc).
Here is the summary of the result:
OpenVPN 740Mbps Download & 466 Mbps Upload with OpenSpeedTest
Wireguard 931Mbps Download and 899Mbps Upload with OpenSpeedTest
SQM QoS The optimized throughput is 1800Mbps

Video timeframe:

00:00 - Intro
00:32 - Test Lab Network Diagram
01:09 - Install & Configure OpenVPN
01:37 - OpenVPN Throughput - OpenSpeedTest
01:54 - OpenVPN Throughput - iperf3 (Normal & Reverse mode)
02:10 - Install & Configure Wireguard (Drag & Drop)
02:37 - Wireguard Throughput - OpenSpeedTest & iPerf3
03:05 - Install SQM QoS on LuCI
03:20 - Check Ping Response Time before Enable SQM QoS
04:08 - SQM QoS 2500Mbps - Cake & Piece_of_Cakes
04:42 - SQM QoS 2000Mbps - Cake & Piece_of_Cakes
05:04 - SQM QoS 2000Mbps Download - 1800Mbps Upload
05:25 - SQM QoS 1800Mbps Download & Upload
05:39 - SQM QoS - Speedtest, Fast & OpenSpeedTest at the same time

You can check out the related videos:
Fanless Intel N5105 4 x 2.5GbE Router PC Unboxing & Overview -    • Intel N5105 4 x 2.5G Ethernet Router ...
Install OpenWRT 22.03 & WAN to LAN Throughput Test -   • OpenWRT - Intel N5105 2.5GbE I225-V -...
Configure OpenVPN Client on OpenWRT -    • OpenWRT - Configure OpenVPN Client
Configure Wireguard VPN on OpenWRT -    • OpenWRT - Configure Wireguard Client

Thanks for watching and see you all!
